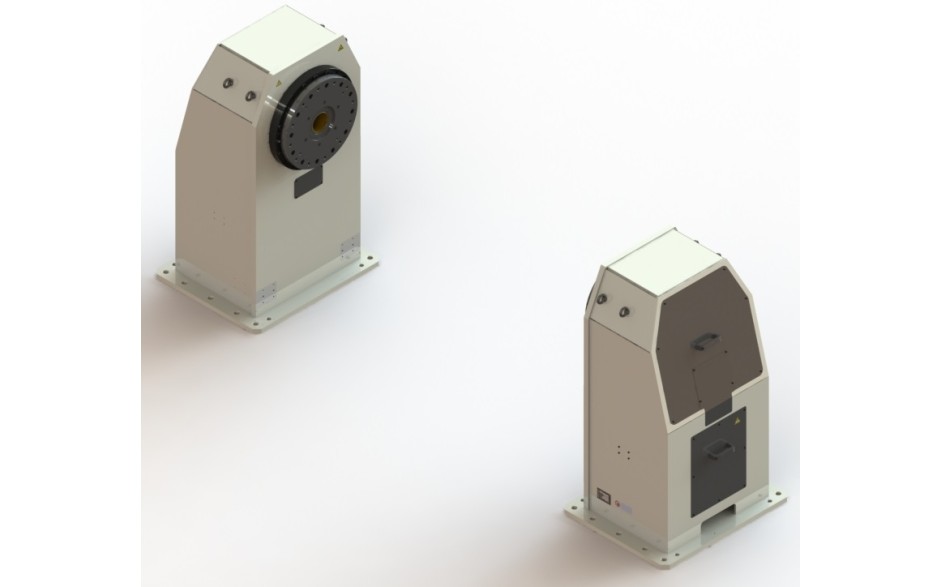

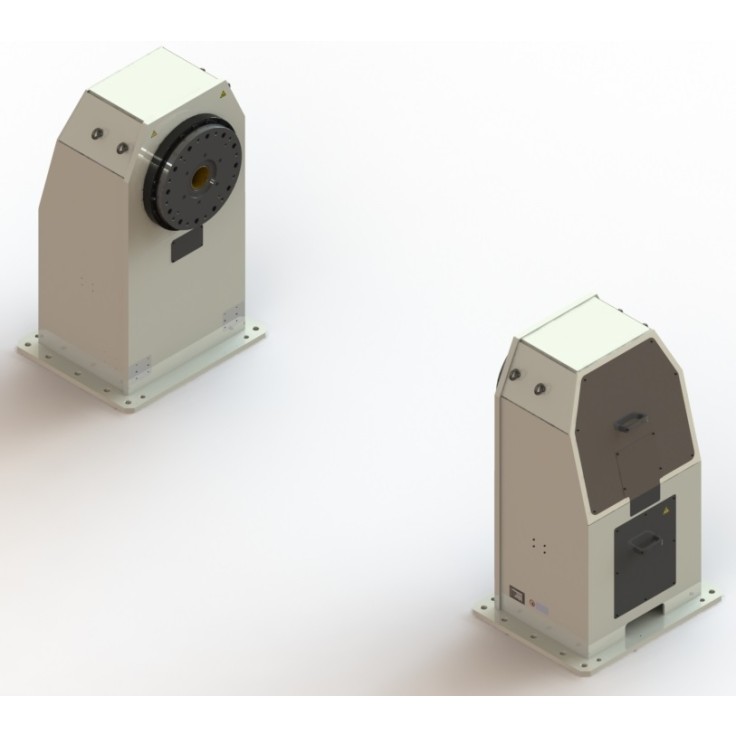

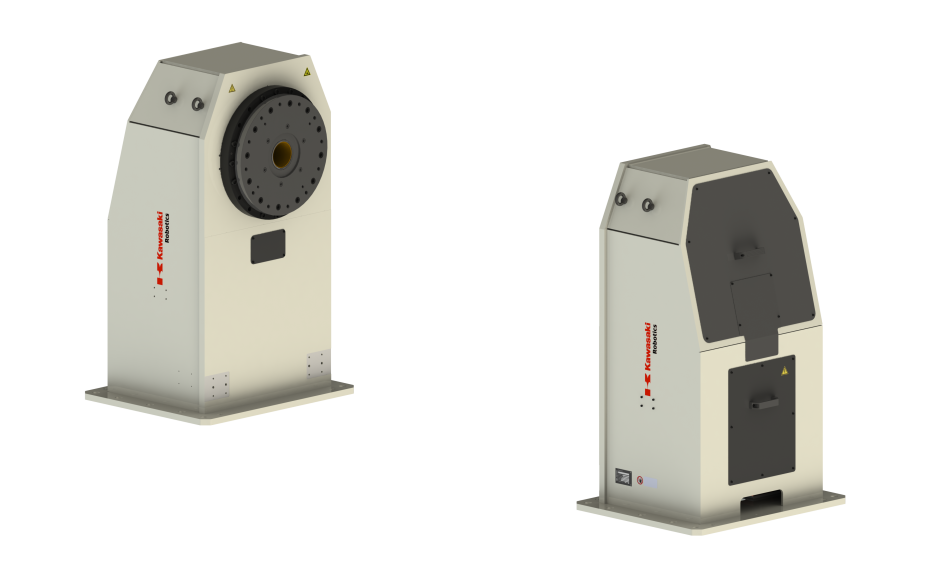

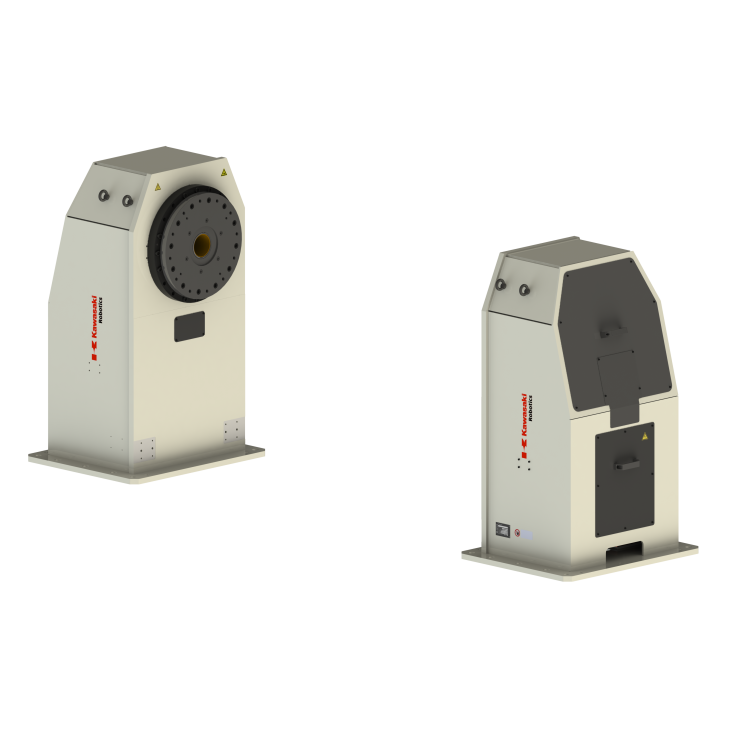

Single axis welding positioner with rated capacity of 3300 kg

Single axis welding positioner with rated capacity of 3300 kg

Single axis welding positioner with rated capacity of 3300 kg

icon-sku SKU: PST3300-H1-x

2-8 weeks icon-time
Use of this product requires an individual consultation.
Courier delivery /  own transport   Conditions of delivery »
 Support details »


Product description

• Horizontal rotating axis in lower position than PST2000-H1-x • Supporting unit - extended length of workpiece • Kawasaki external axis (E0x controller) • Payload 3300 kg

Max. payload 3300 kg
Degree of freedom 1 axis
Nominal torque JT1 3136 Nm
Max. torque JT1 7840 Nm
Max. tilting torque 20000 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 70°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 105 mm
Max. mass moment of inertia JT1 3200 kgm2
Mass 1400 kg
Default height of rotating axis JT1 1025 mm
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
