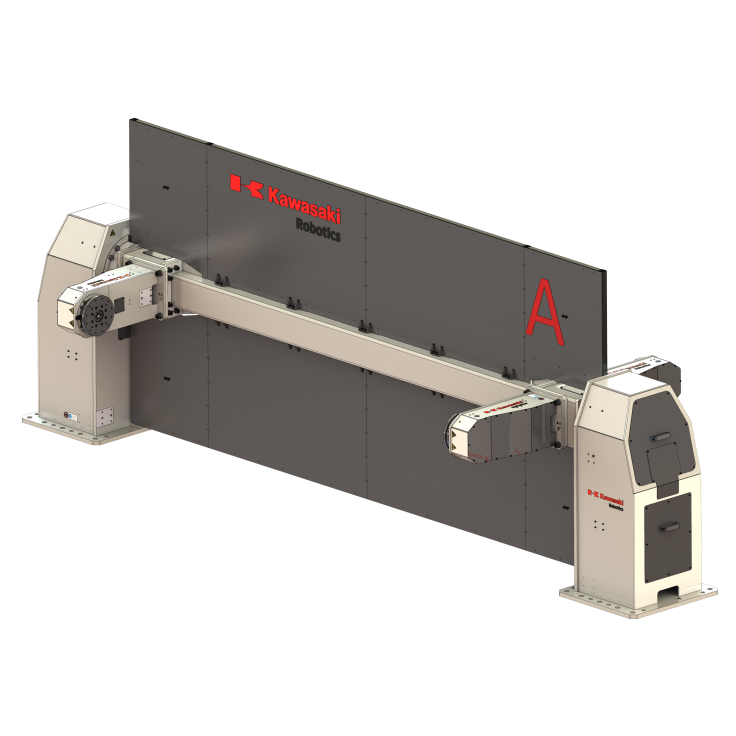

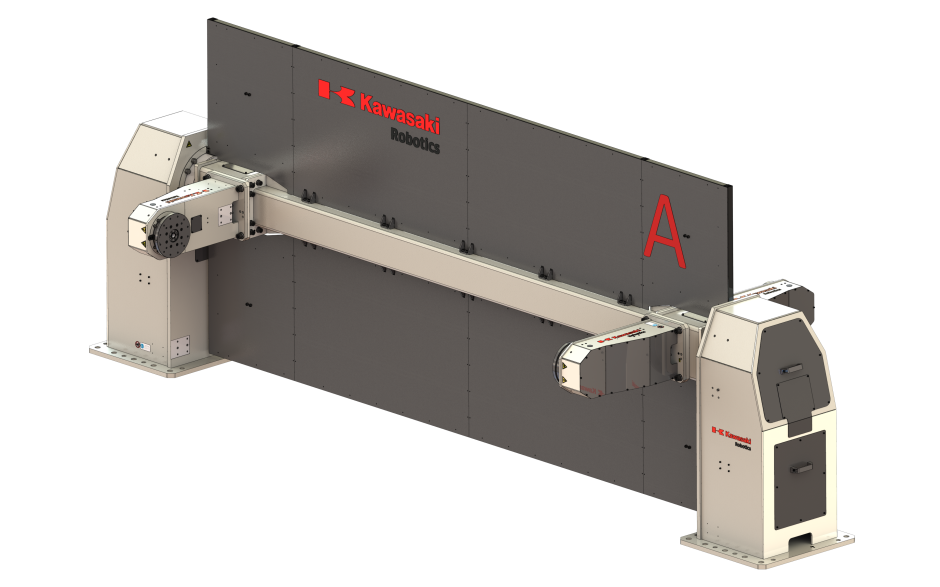

Multi axis welding positioner with 3 horizontal rotating axis, 2 stations and 250 kg payload

SKU: PST250-M3H3

2-8 savaites

Šio produkto naudojimui reikalinga individuali konsultacija.

Kurjerio pristatymas / own transport Pristatymo sąlygos »

Garantinė informacija »

• General purpose multipositioner

• 3 Horizontal rotating axis

• 2 stations

• 2 Kawasaki external axis (E0x controller)

• Payload 250 kg per side

Max. payload	250 kg
Distance between flanges	2000 / 2500 / 3000 / 3500 / 4000
Degree of freedom	3 axis
Max.diameter of detail	1300 mm
Load ratio between the parties	100:60
Nominal torque JT2/3	265 Nm
Max torque JT2/3	No
Turning range JT1	+/-182°
Turning range JT2/3	+/-360°*
Max. rotating speed JT1	75°/s
Max. rotating speed JT2/3	180°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT2/3	100 mm
Turning time JT1 (180°)	3.35 s
Max. mass moment of Inertia JT1 - without the inertia of the structure	950 kgm2
Max. mass moment of Inertia JT2/3	80 kgm2
Mass	1050.0000
Max. loading height	1035 mm
Installation	Floor
Color	NCS S 0510-G50Y & RAL9011
Built-in utilities	Welding ground transfer system
Nominal weld current - 100% duty cycle	500 A
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
