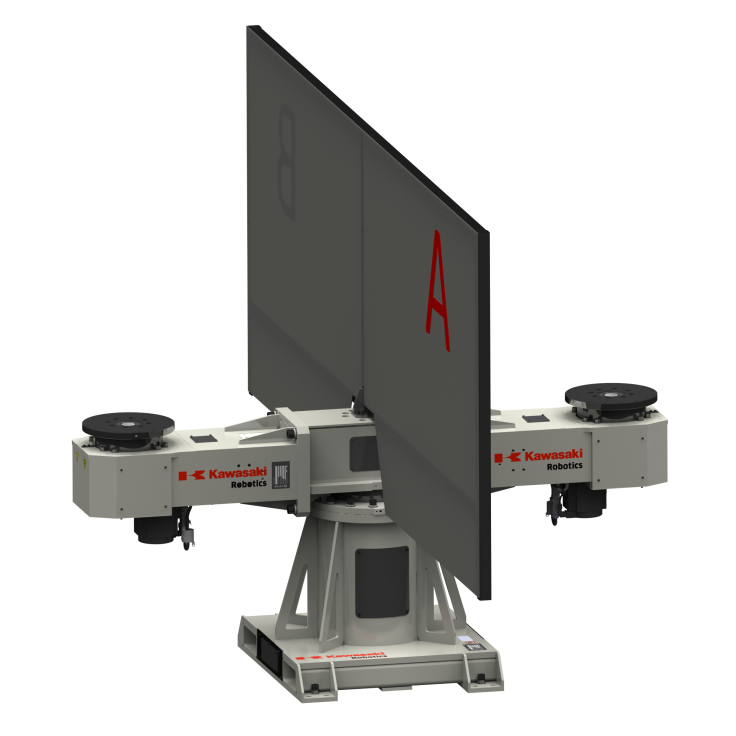

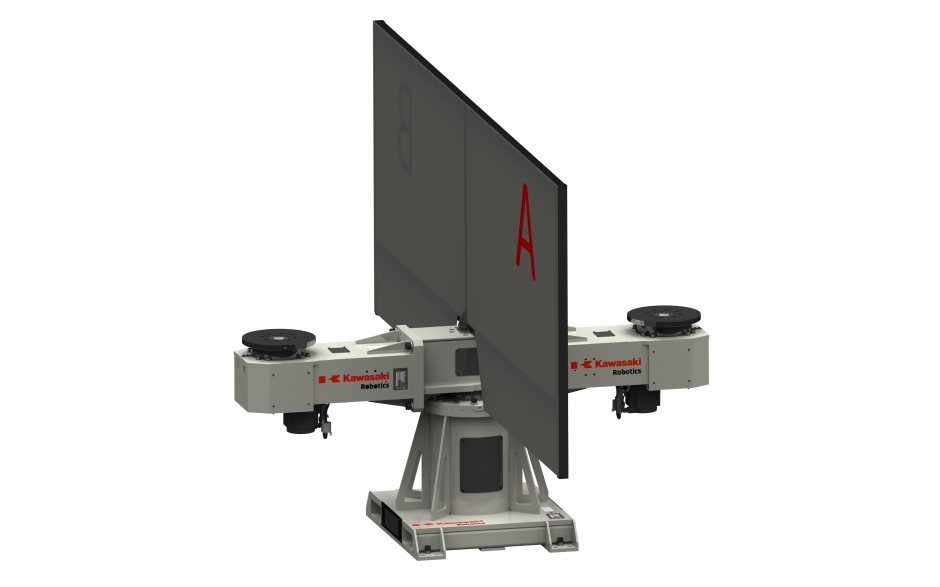

Multi axis welding positioner with 3 vertical rotating axis, 2 stations and 180 kg payload

SKU: PST180-M3V3

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery / own transport Conditions of delivery »

Support details »

• General purpose multipositioner

• 3 Vertical rotating axes

• 2 stations

• 2 Kawasaki external axis (E0x controller)

• Payload 180kg per side

• One Axis in configuration A

• Two axes in configuration B

Max. payload	180 kg
Degree of freedom	5 axis
Turning range JT1 [deg]	-5+185
Max. rotating speed JT1 [deg/s]	74
Nominal torque JT2/JT3 [Nm]	265
Max. torque JT2/JT3 [Nm]	660
Max. tilting torque JT2/JT3 [Nm]	980
Turning range JT2/JT3 [Deg]	+-360
Max. rotating speed JT2/JT3 [deg/s]	180
Max. mass moment of inertia JT2/JT3 [kgm2]	113
Repeatability [mm]	+-0,05
Mass [kg]	670
Default height of rotating plate JT4/JT5 [mm]	865

* These are indicative parameters.
