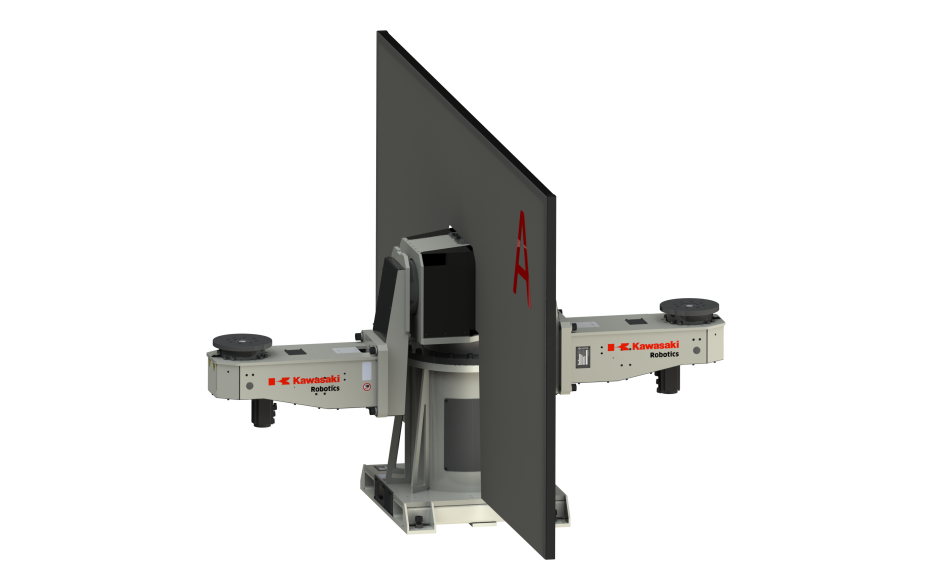

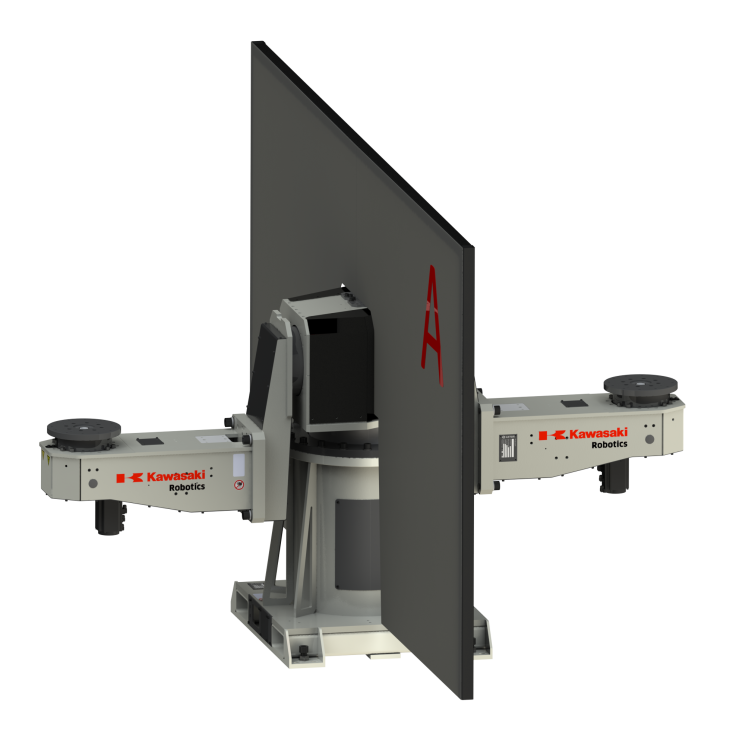

Five axis welding positioner with rated capacity of 500 kg
Five axis welding positioner with rated capacity of 500 kg
Prekės aprašymas
• General purpose multipositioner
• 2 Horizontal rotating axis, 3 Vertical rotating axis
• 2 stations
• 2 Kawasaki external axis (E0x controller)
• Payload 500kg per side
| Max. payload | 500 kg |
| Degree of freedom | 5 axis |
| Nominal torque JT1 [Nm] | - |
| Max. torque JT1 [Nm] | - |
| Max. tilting torque JT1 [Nm] | - |
| Turning range JT1 [deg] | -5+185 |
| Max. rotating speed JT1 [deg/s] | 60 |
| Nominal torque JT2/JT3 [Nm] | 1450 |
| Max. torque JT2/JT3 [Nm] | 4680 |
| Max. tilting torque JT2/JT3 [Nm] | 4910 |
| Turning range JT2/JT3 [Deg] | -240+240 |
| Max. rotating speed JT2/JT3 [deg/s] | 110 |
| Max. mass moment of inertia JT2/JT3 [kgm2] | 469 |
| Nominal torque JT4/JT5 [Nm] | 950 |
| Max torque JT4/JT5 [Nm] | 2450 |
| Max bending moment JT4/JT5 [Nm] | 1750 |
|
Turning range JT4/JT5 [Deg] |
+-360 |
|
Max. rotating speed JT4/JT5 [deg/s] |
150 |
| Max. mass moment of inertia JT4/JT5 [kgm2] | 330 |
| Repeatability [mm] | +-0,05 |
| Mass [kg] | 1500 |
| Default height of rotating plate JT4/JT5 [mm] | 886 |
* These are indicative parameters.
