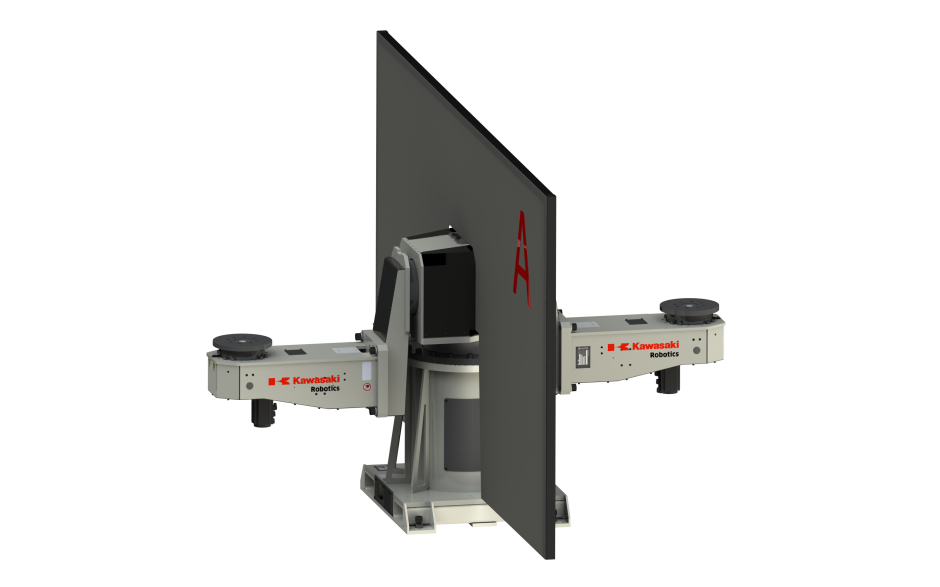

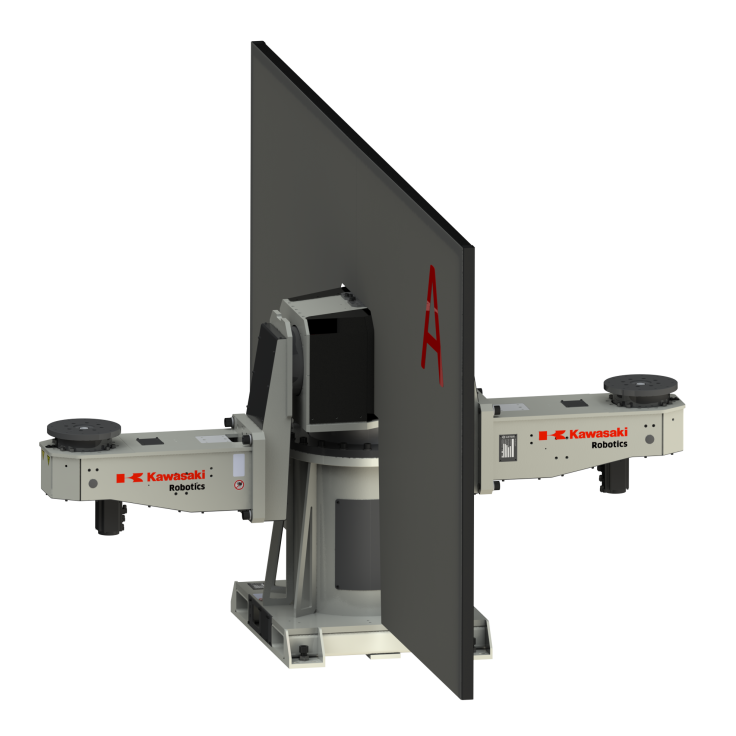

Five axis welding positioner with rated capacity of 125 kg

SKU: PST125-M5-H2V3

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery / own transport Conditions of delivery »

Support details »

• General purpose multipositioner

• 3 Horizontal rotating axis, 3 Vertical rotating axis

• 2 stations

• 2 Kawasaki external axis (E0x controller)

• Payload 125 kg per side

Max. payload	125 kg
Degree of freedom	5 axis
Nominal torque JT1 [Nm]	-
Max. torque JT1 [Nm]	-
Max. tilting torque JT1 [Nm]	-
Turning range JT1 [deg]	-5+185
Max. rotating speed JT1 [deg/s]	60
Nominal torque JT2/JT3 [Nm]	490
Max. torque JT2/JT3 [Nm]	1200
Max. tilting torque JT2/JT3 [Nm]	1450
Turning range JT2/JT3 [Deg]	-240+240
Max. rotating speed JT2/JT3 [deg/s]	150
Max. mass moment of inertia JT2/JT3 [kgm2]	180
Nominal torque JT4/JT5 [Nm]	265
Max torque JT4/JT5 [Nm]	660
Max bending moment JT4/JT5 [Nm]	850
Turning range JT4/JT5 [Deg]	+-360
Max. rotating speed JT4/JT5 [deg/s]	180
Max. mass moment of inertia JT4/JT5 [kgm2]	80
Repeatability [mm]	+-0,05
Mass [kg]	1100
Default height of rotating plate JT4/JT5 [mm]	766,6
