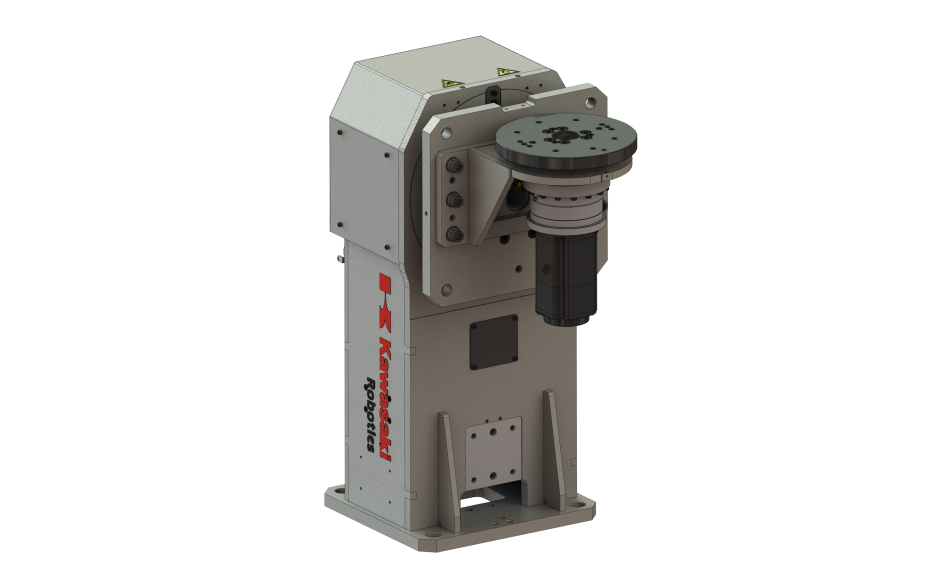

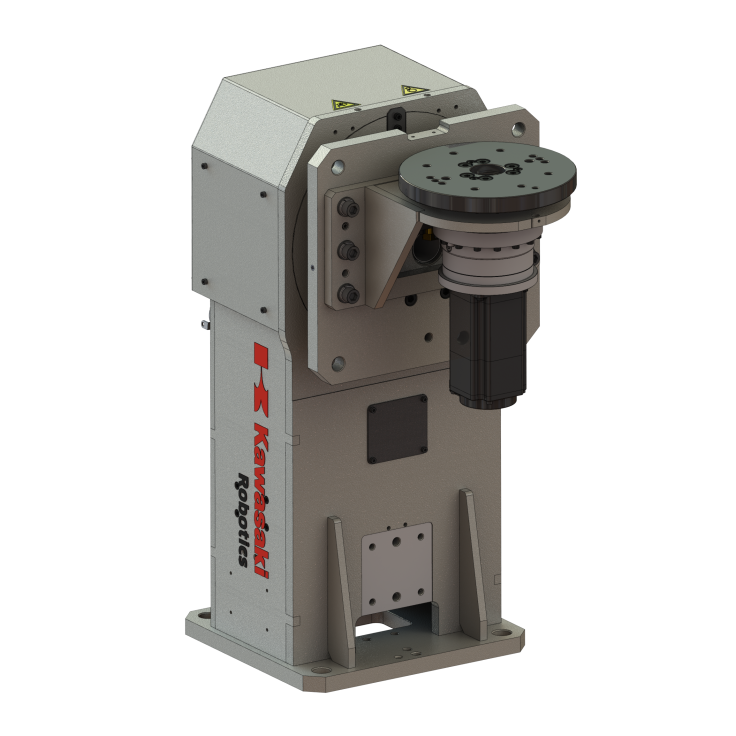

Double axis welding positioner with rated capacity of 230 kg

SKU: PST230E-F2

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery / own transport Conditions of delivery »

Support details »

• General purpose double axis positioner

• Horizontal rotating axis + Vertical rotating axis

• Kawasaki external axis (E0x controller)

• Payload 230 kg

Max. payload	230 kg
Degree of freedom	2 axis
Nominal torque JT1	490 Nm
Max. torque JT1	1200 Nm
Nominal torque JT2	167 Nm
Max torque JT2	412 Nm
Turning range JT1	+/-180°
Turning range JT2	+/-360°
Max. rotating speed JT1	150°/s
Max. rotating speed JT2	120°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT2	100 mm
Max. mass moment of inertia JT2	27 kgm2
Mass	160 kg
Default height of rotating axis JT1	545 mm
