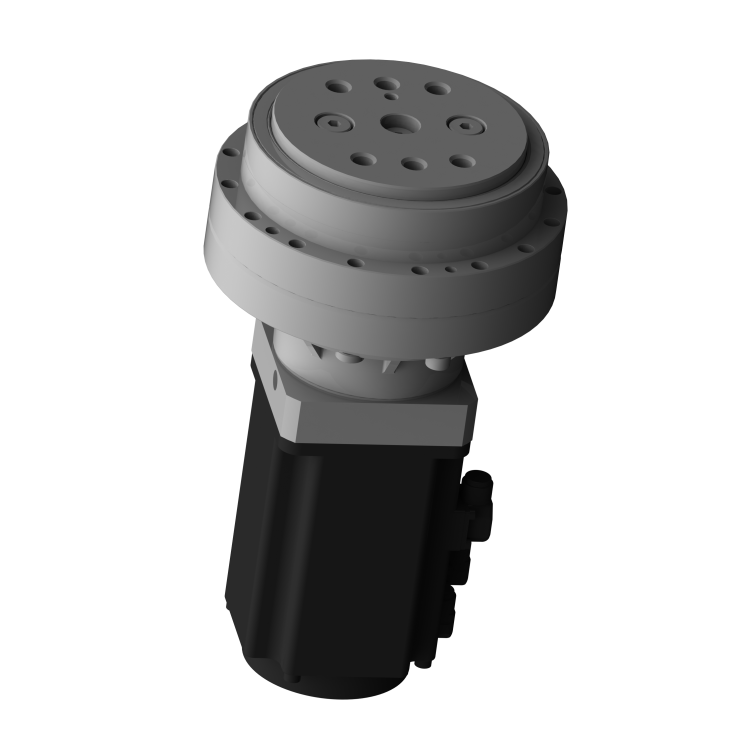

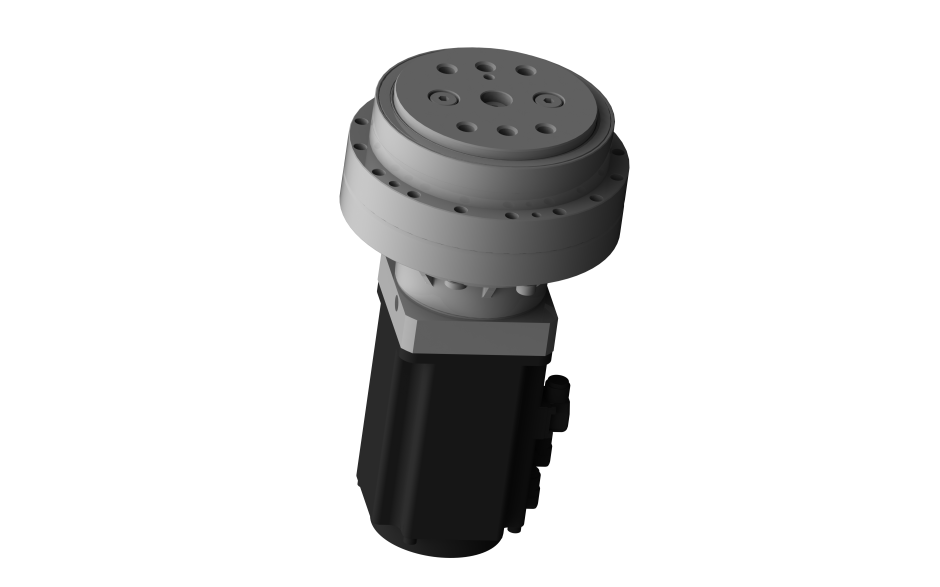

Single axis positioner drive module with rated capacity of 900 kg
Single axis positioner drive module with rated capacity of 900 kg
Product description
• Drive module • Kawasaki external axis (E0x controller) • Payload 900 kg
| Max. payload | 900 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 790 Nm |
| Max. torque JT1 | 1960 Nm |
| Max. tilting torque | 2160 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 110°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | 85 mm |
| Max. mass moment of inertia JT1 | 190 kgm2 |
| Mass | 70 kg |
| Default height of rotating axis JT1 | 185 mm |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
