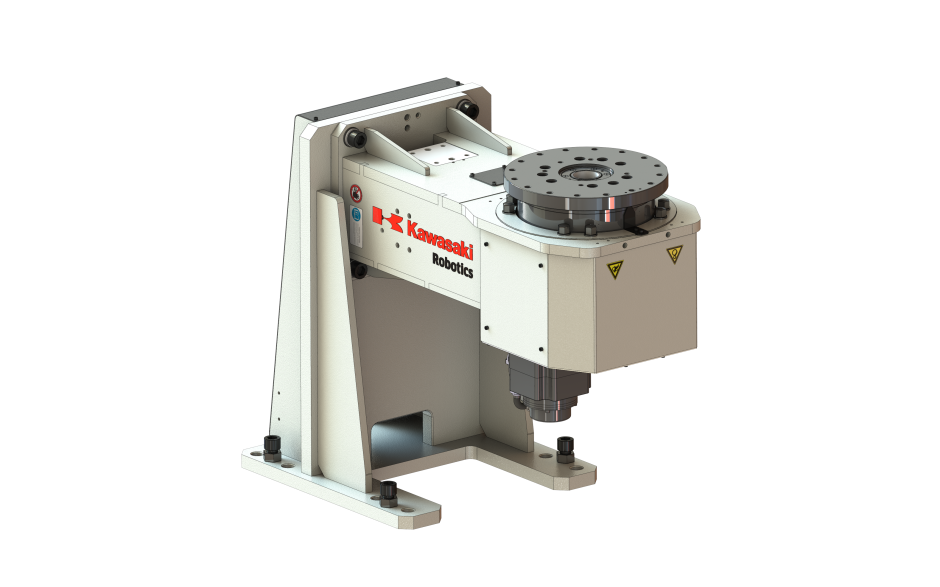

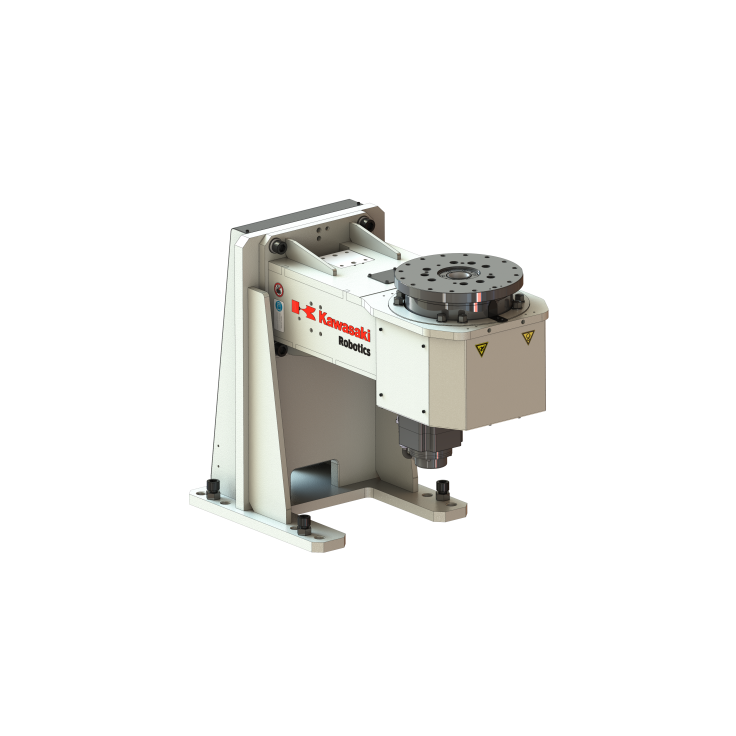

Welding positioner with rated capacity of 750 kg

SKU: PST750-I1

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery - from 9 EUR own transport - free of charge Conditions of delivery »

The product has technical support by ASTRAADA Support details »

• General purpose single axis positioner

• Vertical rotating axis

• Kawasaki external axis (E0x controller)

• Payload 750 kg

Max. payload	750 kg
Degree of freedom	1 axis
Nominal torque JT1	950 Nm
Max. torque JT1	2450 Nm
Max. tilting torque	2450 Nm
Turning range JT1	+/-360°
Max. rotating speed JT1	150°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT1	No
Max. mass moment of inertia JT1	330 kgm2
Mass	280.0000
Default height of rotating axis JT1	702 mm
Installation	Floor
Color	NCS S 0510-G50Y & RAL9011
Built-in utilities	Welding ground transfer system
Nominal weld current - 100% duty cycle	500 A
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
