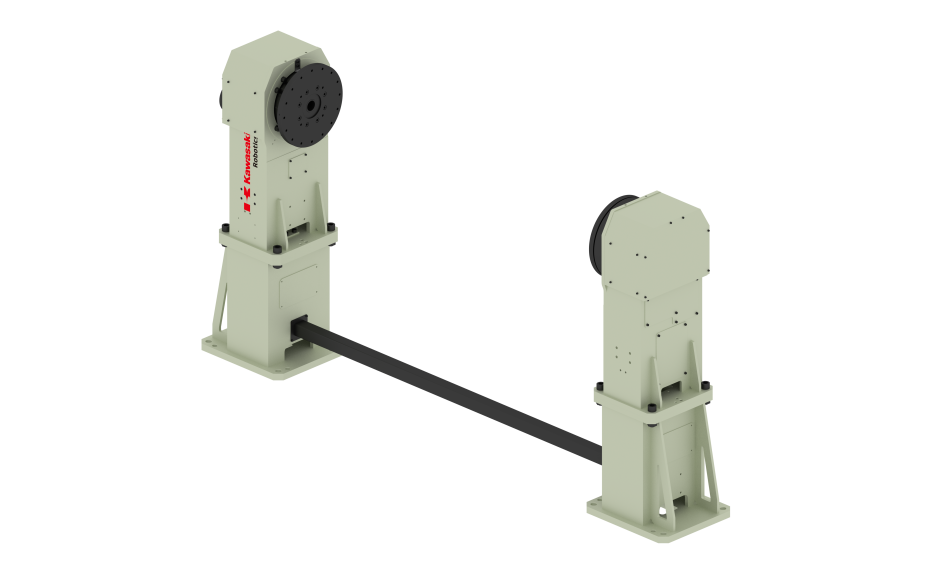

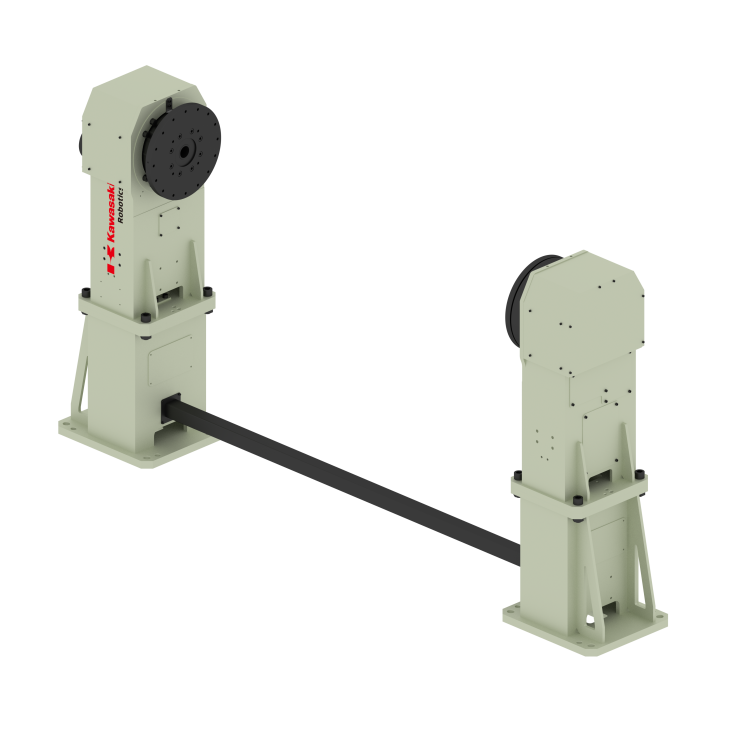

Single axis welding positioner with rated capacity of 500 kg

Single axis welding positioner with rated capacity of 500 kg

Single axis welding positioner with rated capacity of 500 kg

icon-sku SKU: PST500-H1H

2-8 weeks icon-time
Use of this product requires an individual consultation.
Courier delivery - from 9 EUR   own transport - free of charge   Conditions of delivery »
The product has technical support by ASTRAADA  Support details »


Product description

• General purpose single axis positioner

• Horizontal rotating axis

• Supporting unit - extended length of workpiece

• Pedestal unit- extended workpiece dimension

• Kawasaki external axis (E0x controller)

• Payload 500 kg

• Option: central beam**

Max. payload 500 kg
Degree of freedom 1 axis
Nominal torque JT1 490 Nm
Max. torque JT1 1200 Nm
Max. tilting torque 1450 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 100 mm
Max. mass moment of inertia JT1 192 kgm2
Mass 375.0000
Default height of rotating axis JT1 990 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
