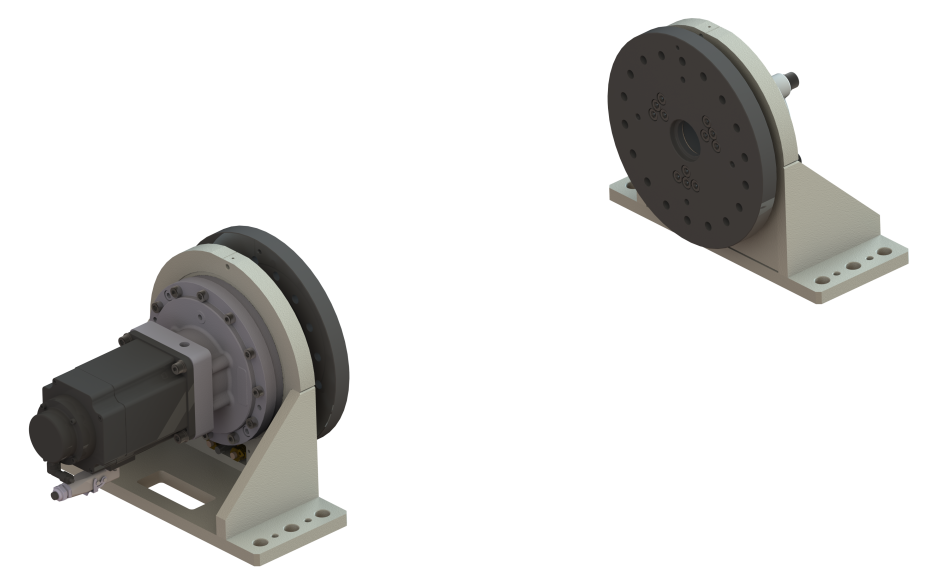

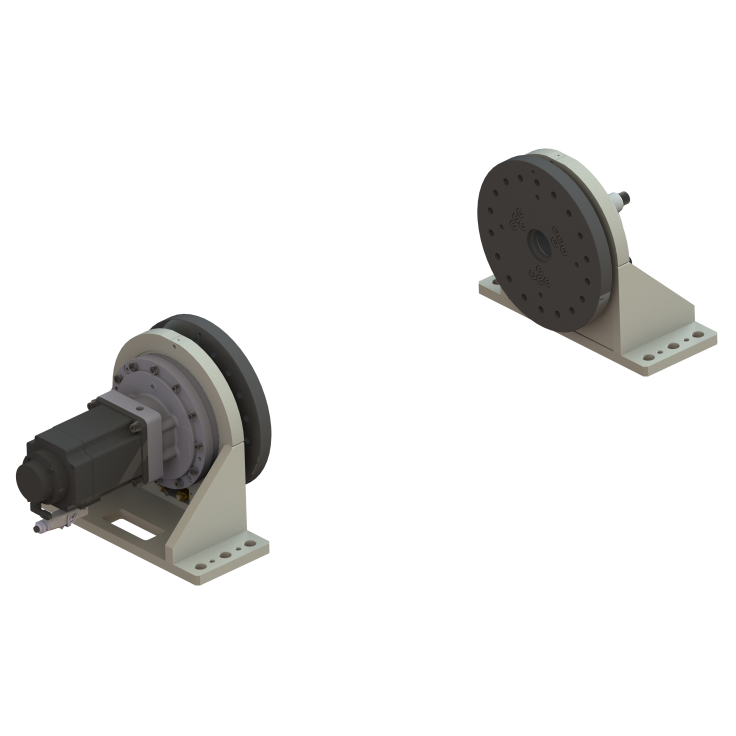

Single axis welding positioner with rated capacity of 460 kg
Single axis welding positioner with rated capacity of 460 kg
Product description
• Horizontal rotating axis • Supporting unit - extended length of workpiece • Kawasaki external axis (E0x controller) • Payload 460 kg
| Max. payload | 460 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 415 Nm |
| Max. torque JT1 | 1030 Nm |
| Max. tilting torque | 1675 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 120°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | 102 mm |
| Max. mass moment of inertia JT1 | 59 kgm2 |
| Mass | 90kg |
| Default height of rotating axis JT1 | 158 mm |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
Documentation and files
PST460E-H1_Kawasaki_Robotics_Welding_Positioner_Instruction_Manual.pdf (933.40 KB)
