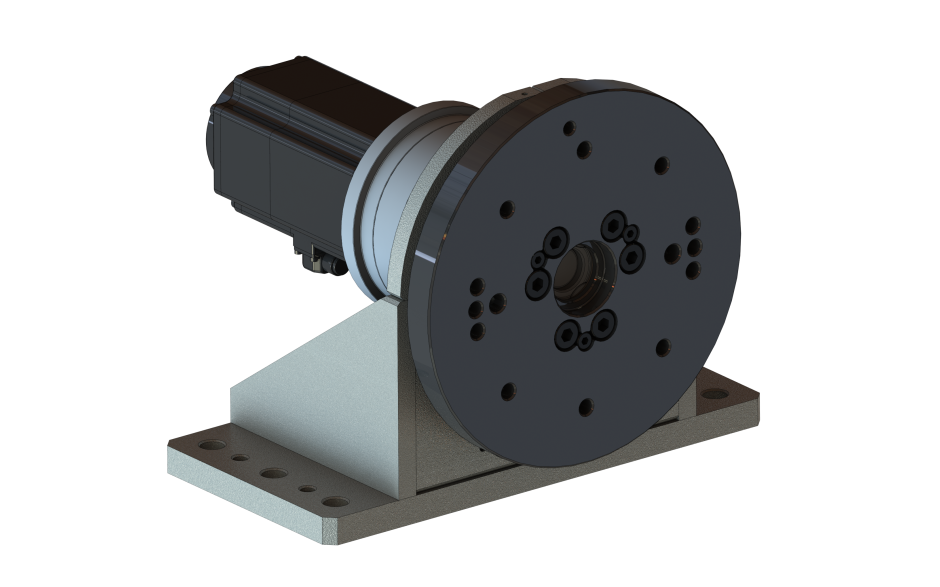

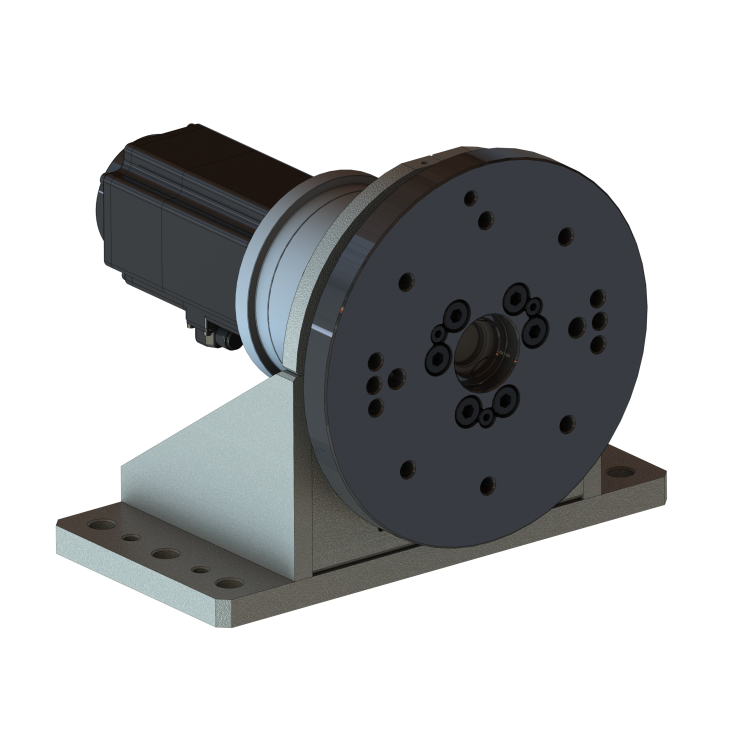

Single axis welding positioner with rated capacity of 230 kg

SKU: PST230E

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery / own transport Conditions of delivery »

Support details »

• Horizontal rotating axis

• Kawasaki external axis (E0x controller)

• Payload 230 kg

Max. payload	230 kg
Degree of freedom	1 axis
Nominal torque JT1	167 Nm
Max. torque JT1	412 Nm
Max. tilting torque	882 Nm
Turning range JT1	+/-360°
Max. rotating speed JT1	120°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT1	102 mm
Max. mass moment of inertia JT1	27 kgm2
Mass	25.0000
Default height of rotating axis JT1	131 mm
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
