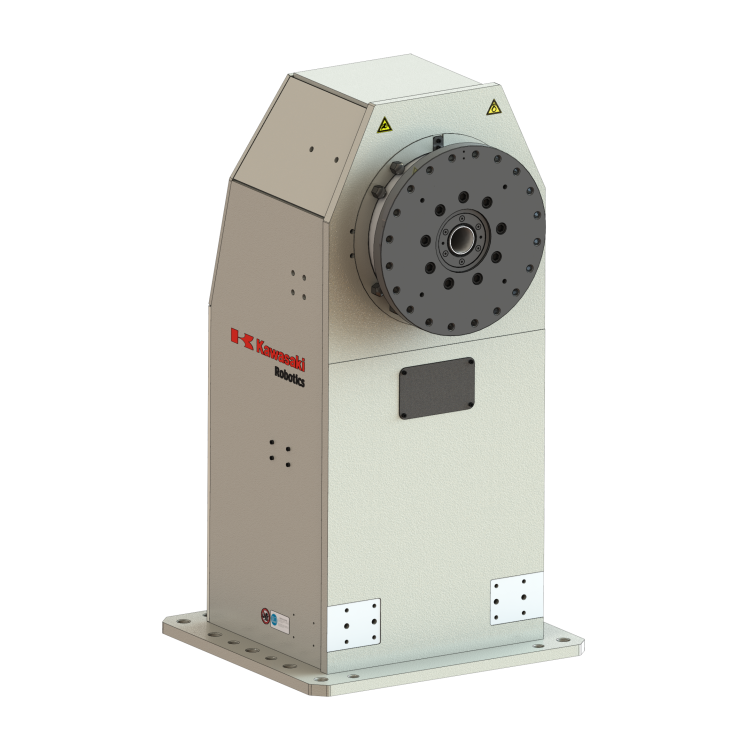

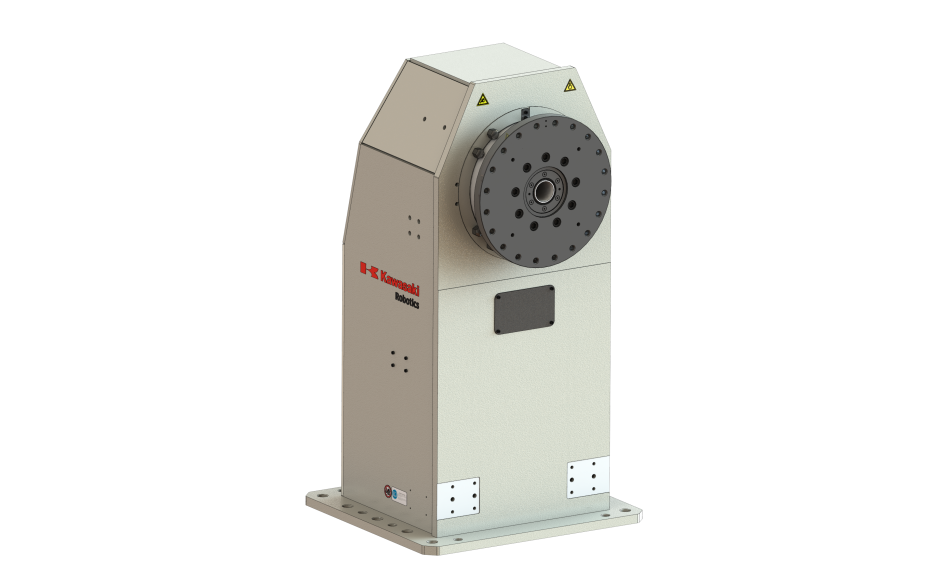

Single axis positioner with rated capacity of 2000 kg

SKU: PST2000

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery - from 9 EUR own transport - free of charge Conditions of delivery »

The product has technical support by ASTRAADA Support details »

• General purpose single axis positioner - basic module

• Horizontal rotating axis

• Kawasaki external axis (E0x controller)

• Payload 2000 kg

Max. payload	2000 kg
Degree of freedom	1 axis
Nominal torque JT1	3136 Nm
Max. torque JT1	7840 Nm
Max. tilting torque	20000 Nm
Turning range JT1	+/-360°
Max. rotating speed JT1	70°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT1	97 mm
Max. mass moment of inertia JT1	3200 kgm2
Mass	700.0000
Default height of rotating axis JT1	1025 mm
Installation	Floor
Color	NCS S 0510-G50Y & RAL9011
Built-in utilities	Welding ground transfer system
Nominal weld current - 100% duty cycle	500 A
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
