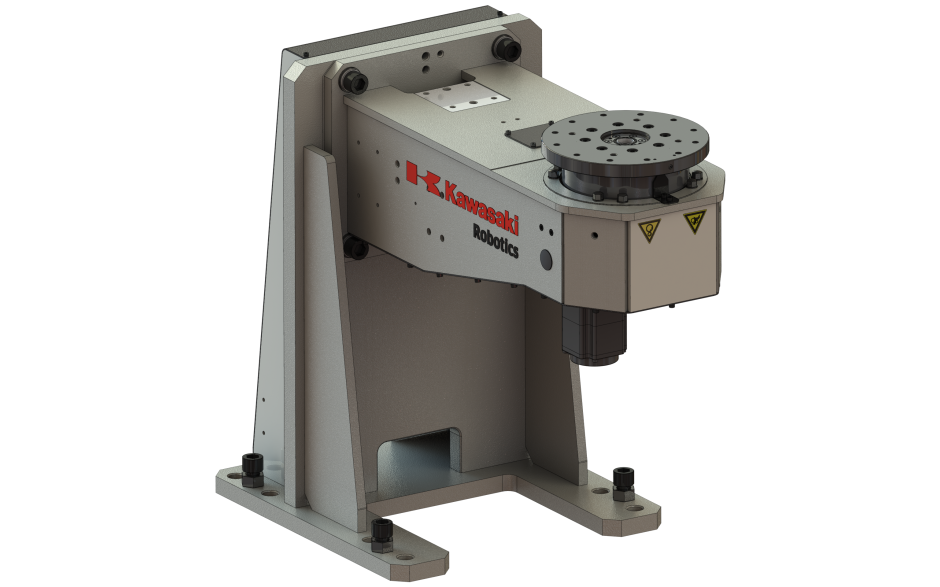

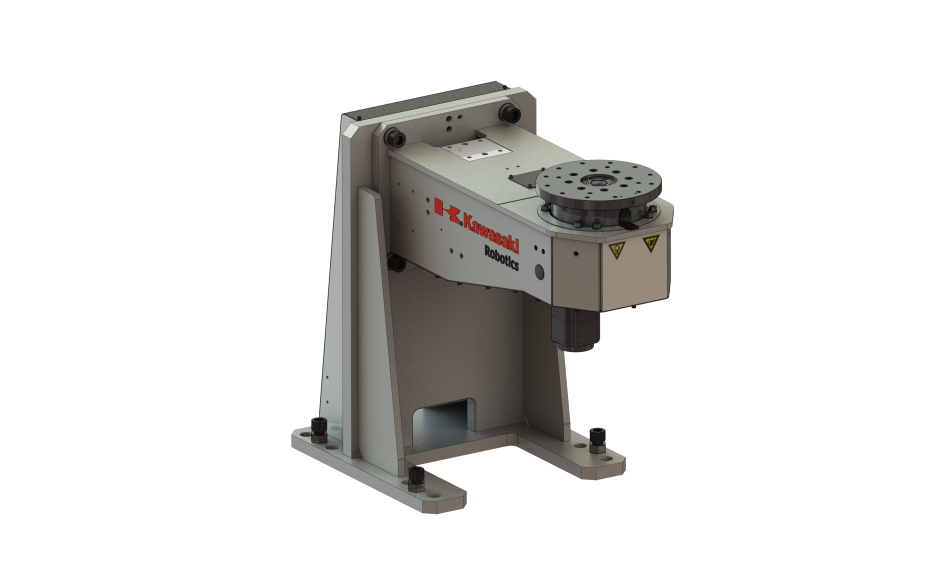

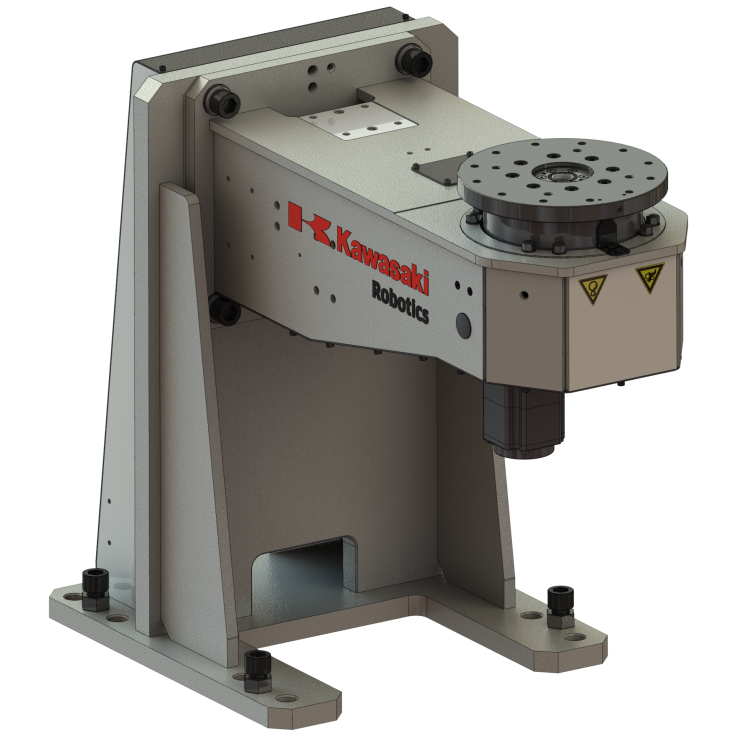

Single axis welding positioner with vertical rotating axis and 180 kg payload

Single axis welding positioner with vertical rotating axis and 180 kg payload

Single axis welding positioner with vertical rotating axis and 180 kg payload

icon-sku SKU: PST180-I1

2-8 weeks icon-time
Use of this product requires an individual consultation.
Courier delivery - from 9 EUR   own transport - free of charge   Conditions of delivery »
The product has technical support by ASTRAADA  Support details »


Product description

• General purpose single axis positioner

• Vertical rotating axis

• Kawasaki external axis (E0x controller)

• Adjustable height (base unit replacement)

• Payload 180 kg

Max. payload 180 kg
Degree of freedom 1 axis
Nominal torque JT1 265 Nm
Max. torque JT1 660 Nm
Max. tilting torque 980 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 180°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 No
Max. mass moment of inertia JT1 80 kgm2
Mass 205.0000
Default height of rotating axis JT1 702 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew

Documentation and files

Dokumentacja (1006.67 KB)
