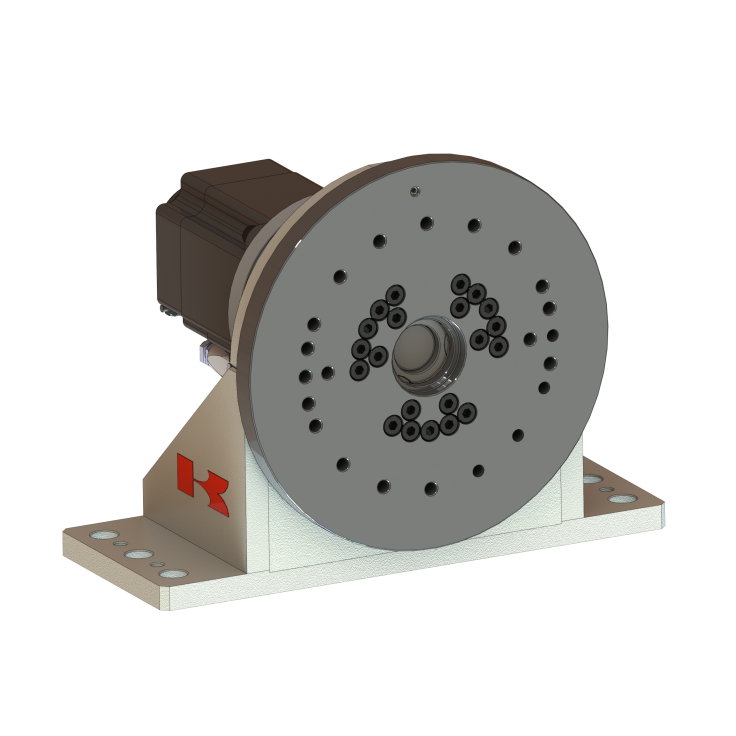

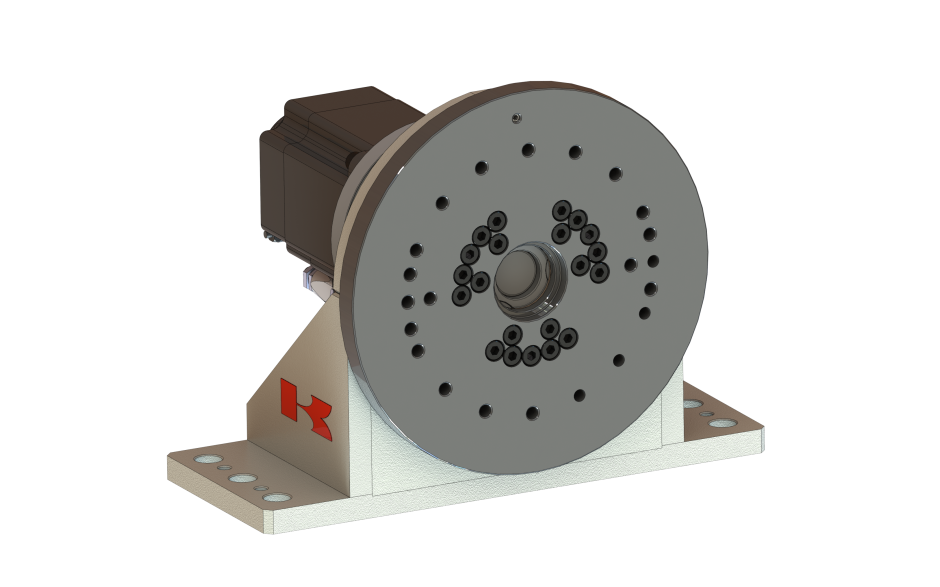

Single axis positioner with rated capacity of 1550 kg

SKU: PST1550E

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery / own transport Conditions of delivery »

Support details »

• Horizontal rotating axis • Kawasaki external axis (E0x controller) • Payload 1550 kg

Max. payload	1550 kg
Degree of freedom	1 axis
Nominal torque JT1	1080 Nm
Max. torque JT1	2700 Nm
Max. tilting torque	2940 Nm
Turning range JT1	+/-360°
Max. rotating speed JT1	110°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT1	85 mm
Max. mass moment of inertia JT1	182 kgm2
Mass	70 kg
Default height of rotating axis JT1	200 mm
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
