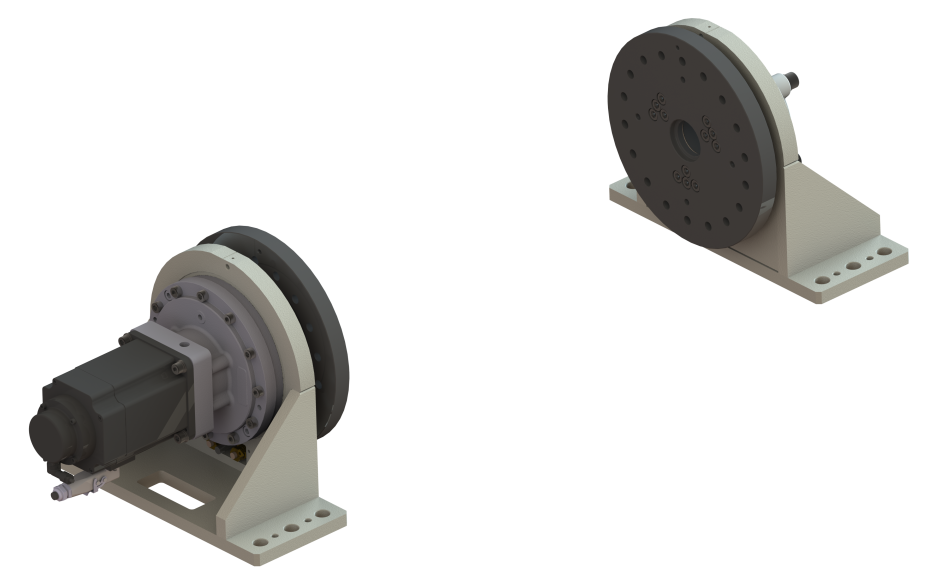

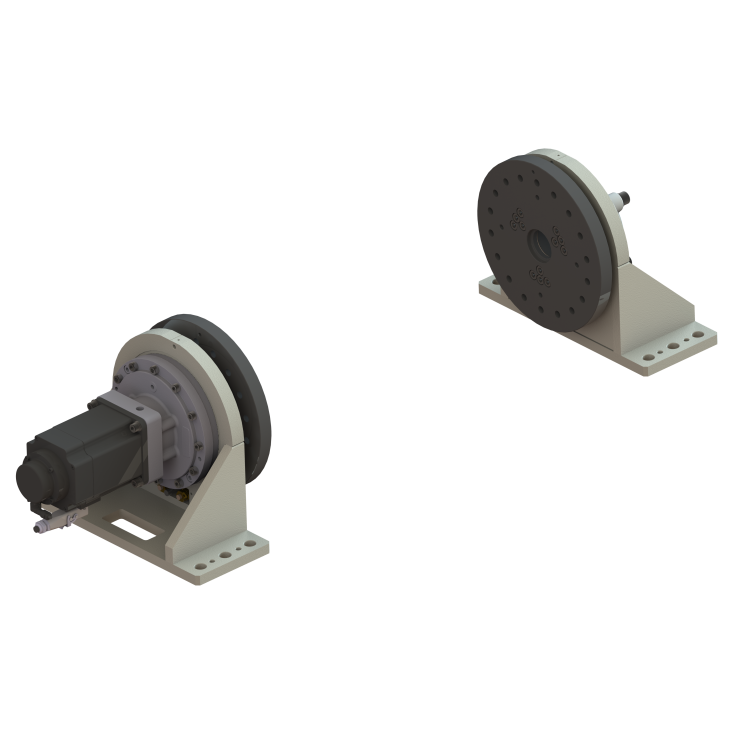

Single axis welding positioner with rated capacity of 1550 kg
Single axis welding positioner with rated capacity of 1550 kg
Product description
• Horizontal rotating axis • Supporting unit - extended length of workpiece • Kawasaki external axis (E0x controller) • Payload 1550 kg
| Max. payload | 1550 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 1080 Nm |
| Max. torque JT1 | 2700 Nm |
| Max. tilting torque | 2940 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 110°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | 85 mm |
| Max. mass moment of inertia JT1 | 182 kgm2 |
| Mass | 150 kg |
| Default height of rotating axis JT1 | 200 mm |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
Documentation and files
PST1550E-H1_Kawasaki_Robotics_Welding_Positioner_Instruction_Manual.pdf (1.08 MB)
