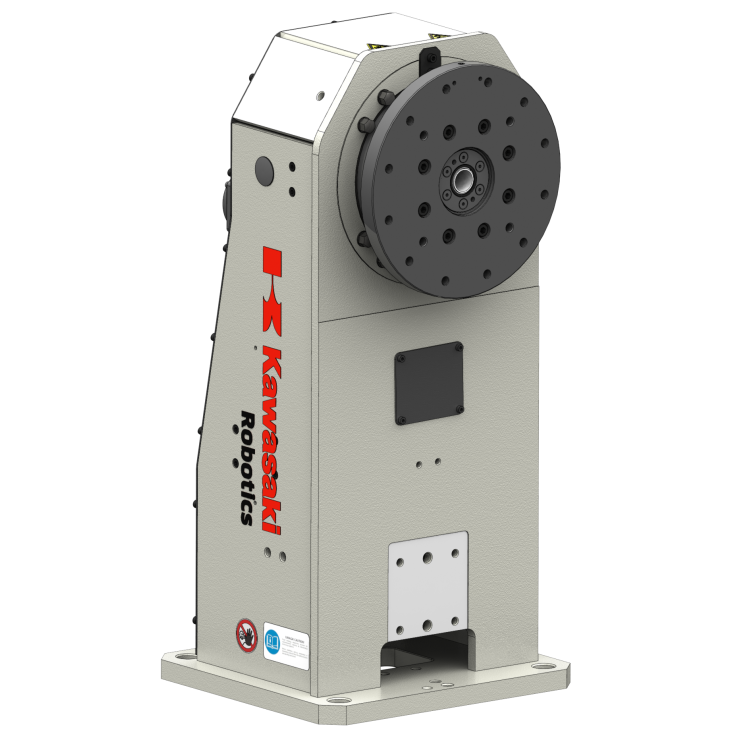

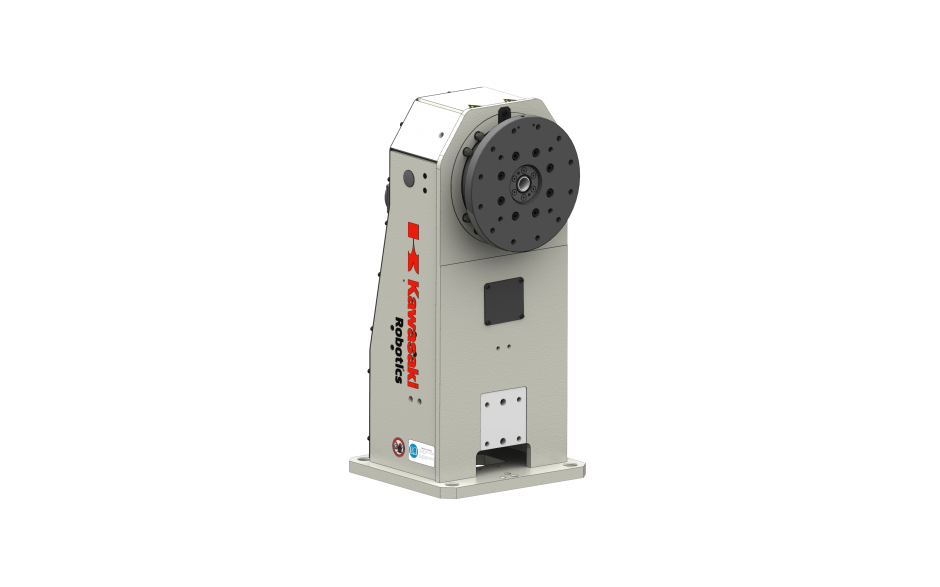

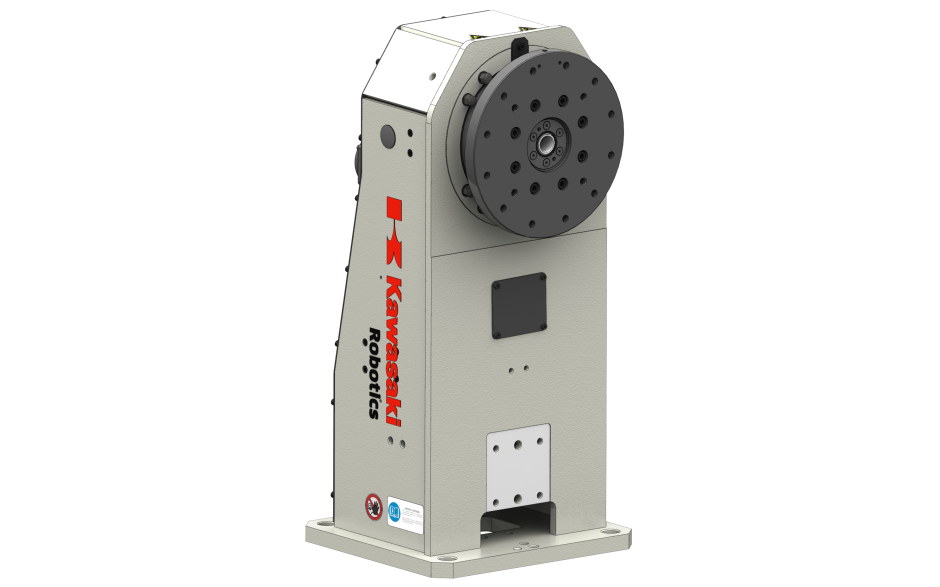

Single axis welding positioner with horizontal rotating axis and 125 kg payload

Single axis welding positioner with horizontal rotating axis and 125 kg payload

Single axis welding positioner with horizontal rotating axis and 125 kg payload

icon-sku SKU: PST125

2-8 weeks icon-time
Use of this product requires an individual consultation.
Courier delivery - from 9 EUR   own transport - free of charge   Conditions of delivery »
The product has technical support by ASTRAADA  Support details »


Product description

• General purpose single axis positioner - basic module • Horizontal rotating axis

• Kawasaki external axis (E0x controller)

• Payload 125 kg

Max. payload 125 kg
Degree of freedom 1 axis
Nominal torque JT1 265 Nm
Max. torque JT1 660 Nm
Max. tilting torque 850 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 180°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 200 mm
Max. mass moment of inertia JT1 80 kgm2
Mass 80.0000
Default height of rotating axis JT1 545 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
