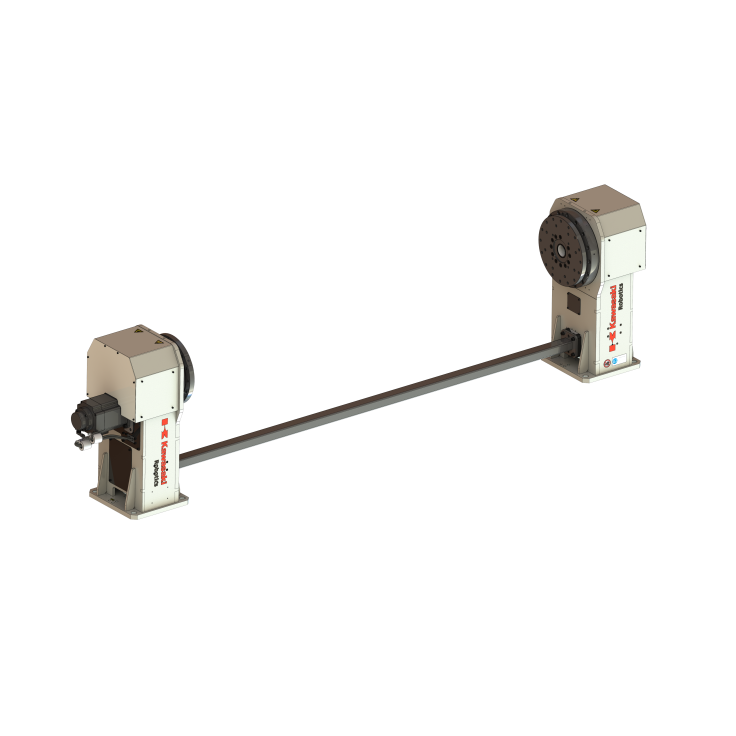

Single axis welding positioner with rated capacity of 1000 kg

SKU: PST1000-H1

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery - from 9 EUR own transport - free of charge Conditions of delivery »

The product has technical support by ASTRAADA Support details »

• General purpose single axis positioner

• Horizontal rotating axis

• Supporting unit - extended length of workpiece

• Kawasaki external axis (E0x controller)

• Payload 1000 kg

• up to 3m distance between flanges with payload of 1000kg

• Option: central beam**

Max. payload	1000 kg
Degree of freedom	1 axis
Nominal torque JT1	950 Nm
Max. torque JT1	2450 Nm
Max. tilting torque	1850 Nm
Turning range JT1	+/-360°
Max. rotating speed JT1	150°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT1	130 mm
Max. mass moment of inertia JT1	192 kgm2
Mass	280.0000
Default height of rotating axis JT1	545 mm
Installation	Floor
Color	NCS S 0510-G50Y & RAL9011
Built-in utilities	Welding ground transfer system
Nominal weld current - 100% duty cycle	500 A
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
