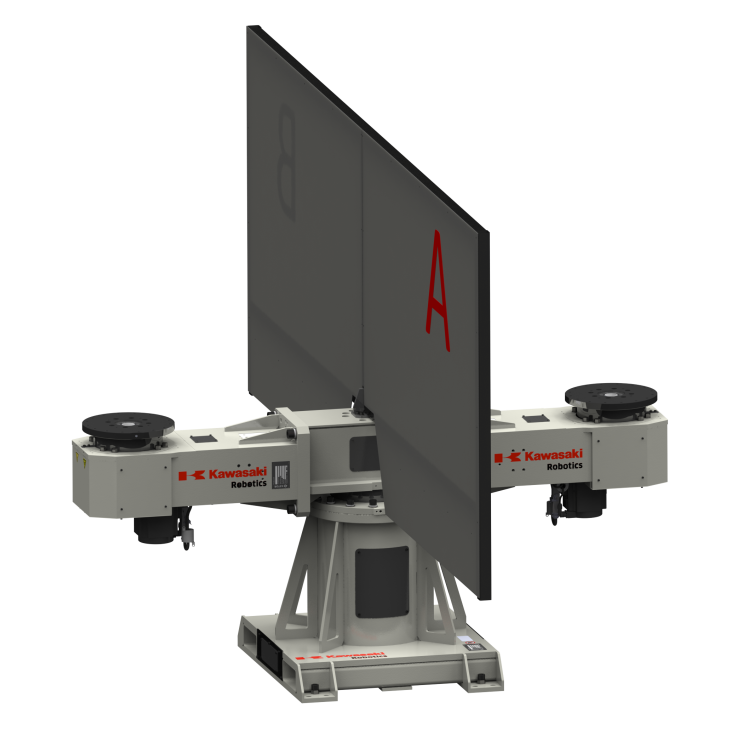

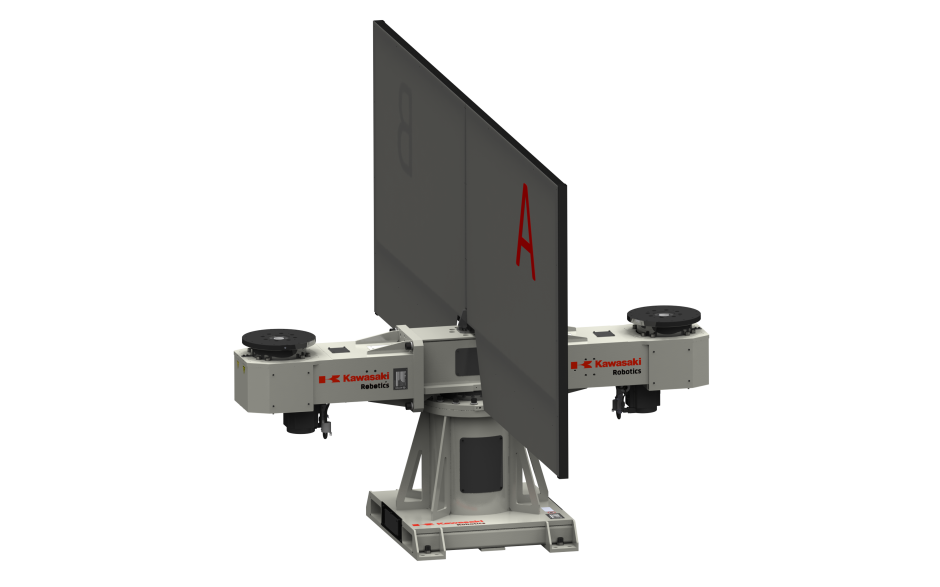

Multi axis welding positioner with 3 vertical rotating axis, 2 stations and 750 kg payload
Multi axis welding positioner with 3 vertical rotating axis, 2 stations and 750 kg payload
Product description
• General purpose multipositioner
• 3 Vertical rotating axes
• 2 stations
• 2 Kawasaki external axis (E0x controller)
• Payload 750kg per side
• One Axis in configuration A
• Two axes in configuration B
| Max. payload | 750 kg |
| Degree of freedom | 5 axis |
| Turning range JT1 [deg] | -5+185 |
| Max. rotating speed JT1 [deg/s] | 60 |
| Nominal torque JT2/JT3 [Nm] | 950 |
| Max. torque JT2/JT3 [Nm] | 2450 |
| Max. tilting torque JT2/JT3 [Nm] | 1750 |
| Turning range JT2/JT3 [Deg] | +-360 |
| Max. rotating speed JT2/JT3 [deg/s] | 150 |
| Max. mass moment of inertia JT2/JT3 [kgm2] | 330 |
| Repeatability [mm] | +-0,05 |
| Mass [kg] | 1070 |
| Default height of rotating plate JT4/JT5 [mm] | 865 |
* These are indicative parameters.
