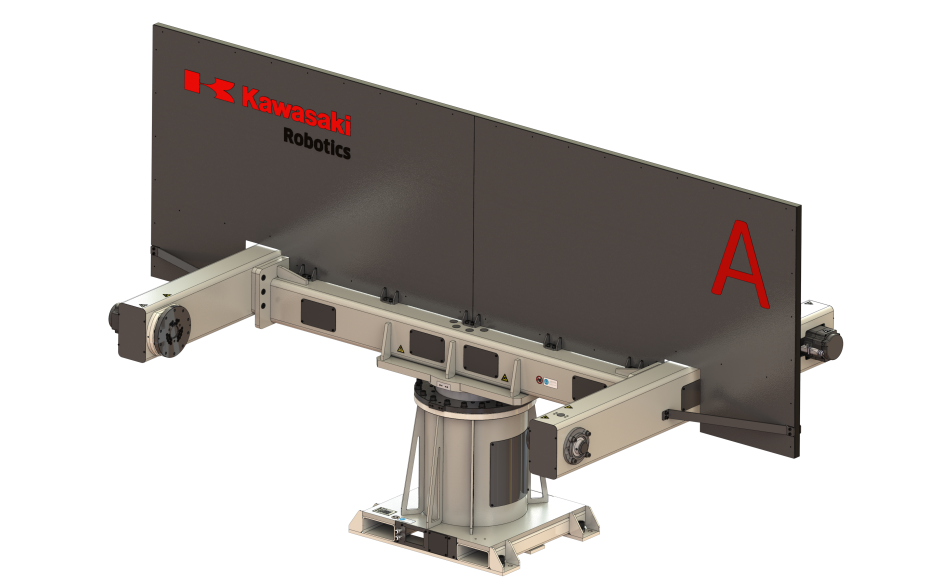

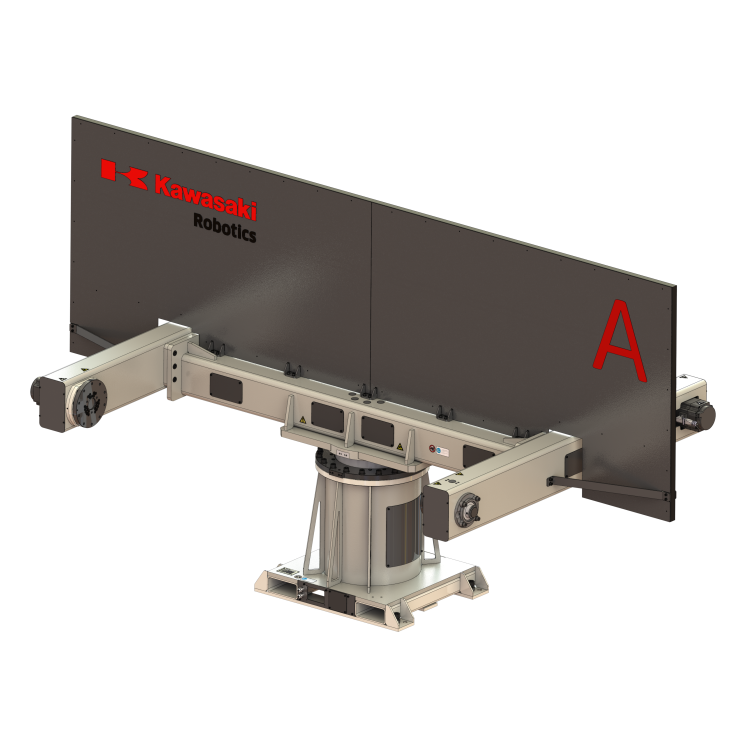

Multi axis welding positioner with vertical rotating axes and 2 horizontal rotating axis and 230 kg payload - Compact version
Multi axis welding positioner with vertical rotating axes and 2 horizontal rotating axis and 230 kg payload - Compact version
Product description
• Lower price and payload than in PST250-M3-H2V1
• payload:230 kg
| Max. payload | 230kg | 230kg |
| Distance between flanges | 1600 | 2000 |
| Degree of freedom | 5 axis | 5 axis |
| Turning range JT1 [deg] | -5+185 | -5+185 |
| Max. rotating speed JT1 [deg/s] | 77 | 77 |
| Nominal torque JT2/JT3 [Nm] | 167 | 167 |
| Max. torque JT2/JT3 [Nm] | 412 | 412 |
| Max. tilting torque JT2/JT3 [Nm] | 882 | 882 |
| Turning range JT2/JT3 [Deg] | +-360 | +-360 |
| Max. rotating speed JT2/JT3 [deg/s] | 120 | 120 |
| Max. mass moment of inertia JT2/JT3 [kgm2] | 27 | 27 |
| Repeatability [mm] | +-0,05 | +-0,05 |
| Mass [kg] | 950 | 1050 |
| Default height of rotating plate JT4/JT5 [mm] | 1070 | 1070 |
