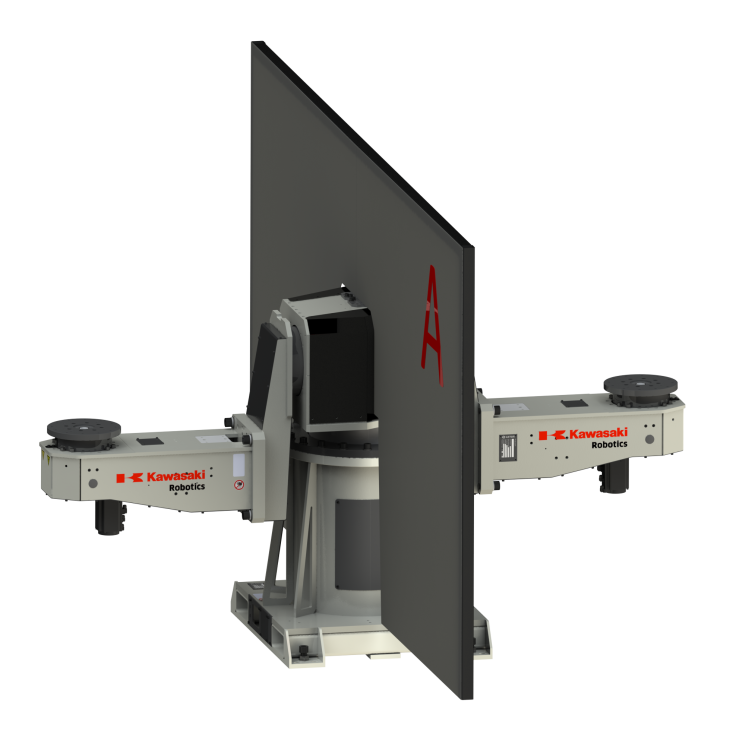

Five axis welding positioner with rated capacity of 250 kg

SKU: PST250-M5-H2V3

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery - from 9 EUR own transport - free of charge Conditions of delivery »

The product has technical support by ASTRAADA Support details »

• General purpose multipositioner

• 2 Horizontal rotating axis, 3 Vertical rotating axis

• 2 stations

• 2 Kawasaki external axis (E0x controller)

• Payload 250kg per side

Max. payload	250 kg
Degree of freedom	5 axis
Max.diameter of detail	1300 mm
Load ratio between the parties	100:60
Nominal torque JT2/3	490 Nm
Max torque JT2/3	No
Turning range JT1	+/-182°
Turning range JT2/3	+/-360°*
Max. rotating speed JT1	60°/s
Max. rotating speed JT2/3	150°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT2/3	100 mm
Turning time JT1 (180°)	3.7 s
Max. mass moment of Inertia JT1 - without the inertia of the structure	4300 kgm2
Max. mass moment of Inertia JT2/3	192 kgm2
Mass	1500.0000
Max. loading height	1035 mm
Installation	Floor
Color	NCS S 0510-G50Y & RAL9011
Built-in utilities	Welding ground transfer system
Nominal weld current - 100% duty cycle	500 A
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
