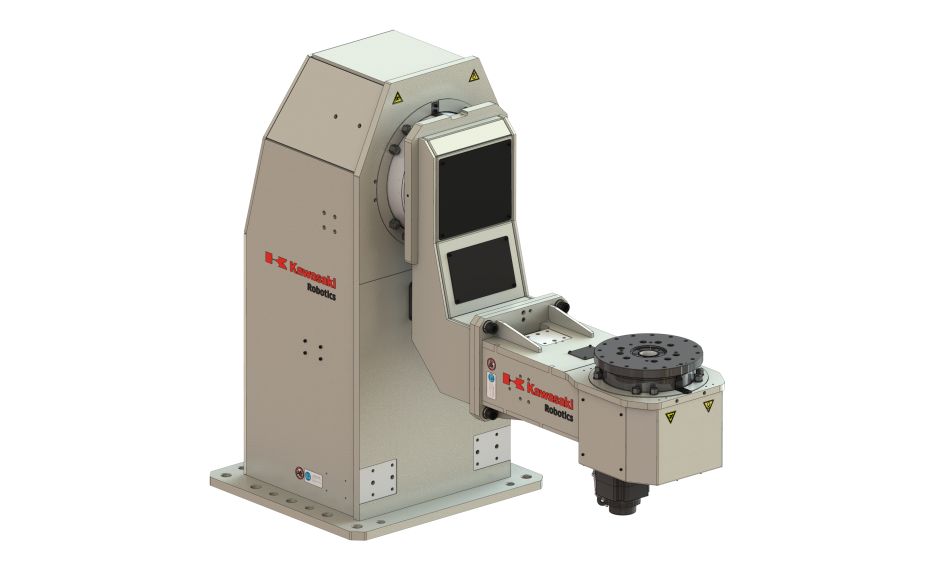

Double axis welding positioner with rated capacity of 500 kg

Double axis welding positioner with rated capacity of 500 kg

Double axis welding positioner with rated capacity of 500 kg

icon-sku SKU: PST500-L2

2-8 weeks icon-time
Use of this product requires an individual consultation.
Courier delivery - from 9 EUR   own transport - free of charge   Conditions of delivery »
The product has technical support by ASTRAADA  Support details »


Product description

• General purpose double axis positioner

• Horizontal rotating axis + Vertical rotating axis

• Kawasaki external axis (E0x controller)

• Payload 500 kg

Max. payload 500 kg
Degree of freedom 2 axis
Nominal torque JT1 1960 Nm
Max. torque JT1 4900 Nm
Nominal torque JT2 950 Nm
Max torque JT2 2450 Nm
Turning range JT1 +/-180°
Turning range JT2 +/-360°
Max. rotating speed JT1 120°/s
Max. rotating speed Jt2 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT2 180 mm
Max. offset COG from flange surface 350 mm
Max. mass moment of inertia JT1 No
Max. mass moment of Inertia JT2 No
Mass 610.0000
Default height of rotating axis JT1 699 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
