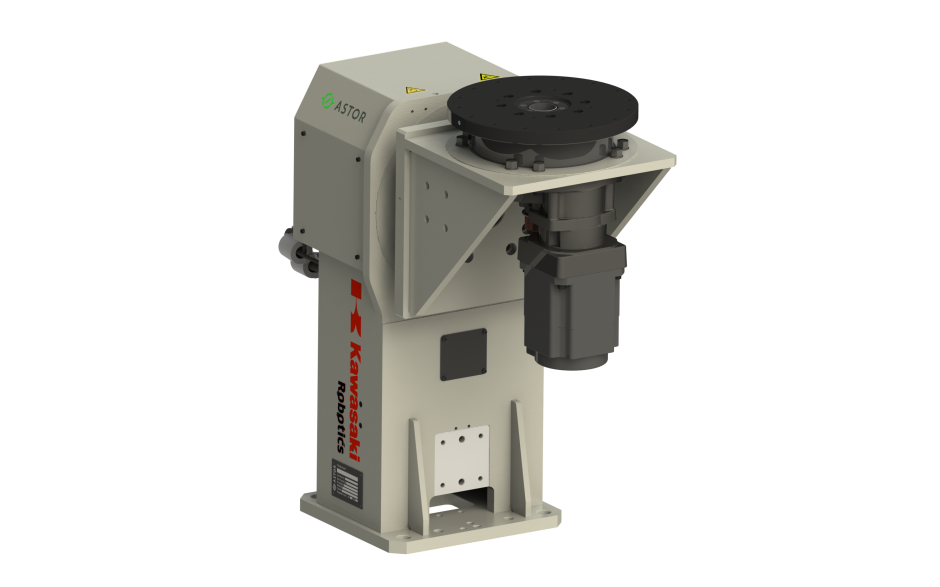

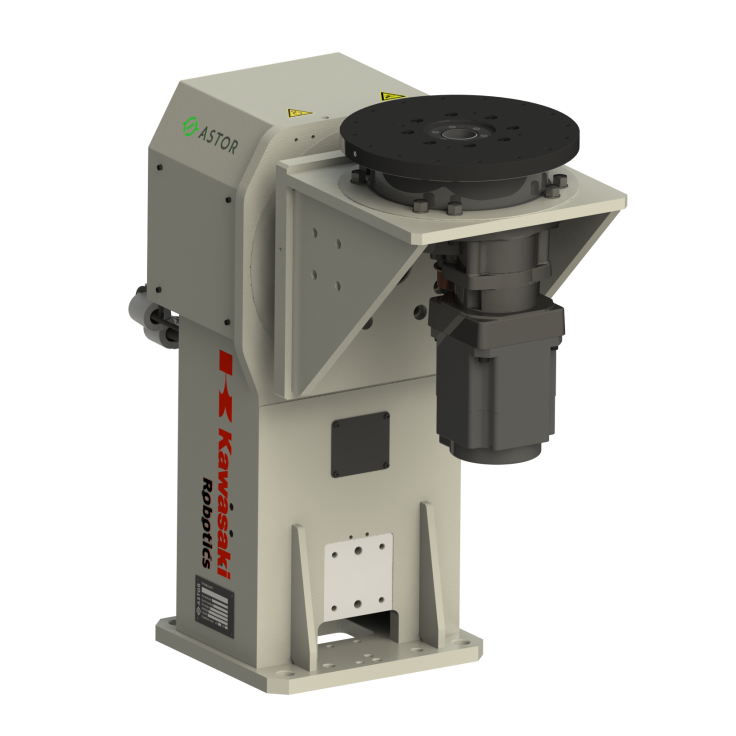

Double axis welding positioner with rated capacity of 500 kg

Double axis welding positioner with rated capacity of 500 kg

Double axis welding positioner with rated capacity of 500 kg

icon-sku SKU: PST500-G2-KAWASAKI

2-8 weeks icon-time
Use of this product requires an individual consultation.
Courier delivery /  own transport   Conditions of delivery »
 Support details »


Product description

• General purpose double axis positioner

• Horizontal rotating axis + Vertical rotating axis

• Kawasaki external axis (E0x controller)

• Payload 500 kg

• User friendy construction

Max. payload 500 kg
Degree of freedom 2 axis
Nominal torque JT1 1960 Nm
Max. torque JT1 4900 Nm
Nominal torque JT2 950 Nm
Max torque JT2 2450 Nm
Turning range JT1 +/-180°
Turning range JT2 +/-360°
Max. rotating speed JT1 110°/s
Max. rotating speed JT2 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT2 180 mm
Max. mass moment of inertia JT2 330 kgm2
Mass 405 kg
Default height of rotating axis JT1 355 mm
