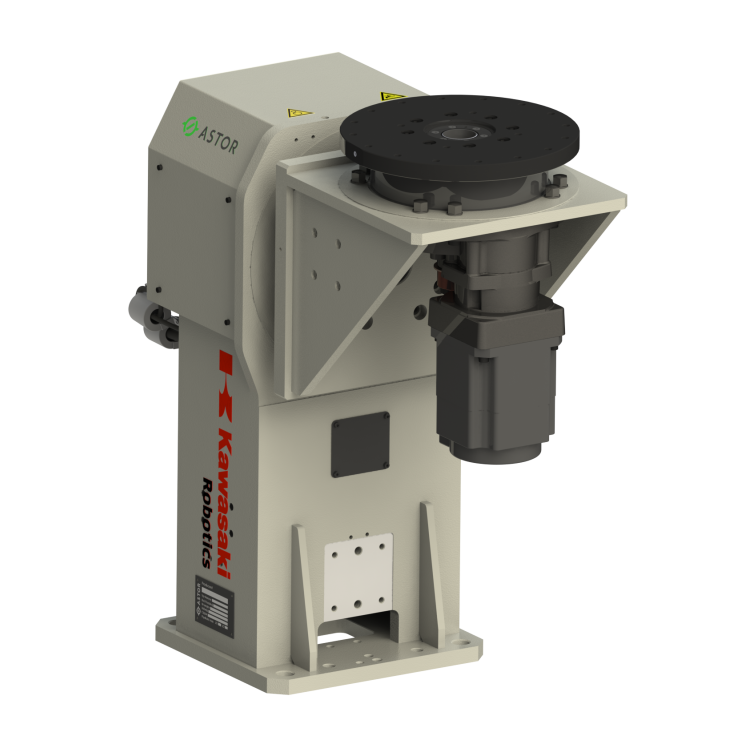

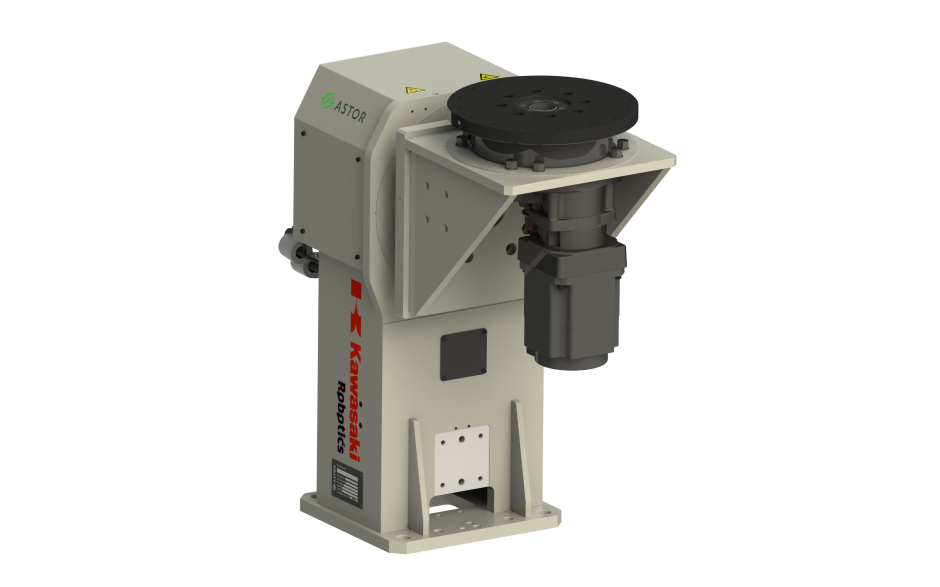

Double axis welding positioner with rated capacity of 250 kg
Double axis welding positioner with rated capacity of 250 kg
Product description
• General purpose double axis positioner
• Horizontal rotating axis + Vertical rotating axis
• Kawasaki external axis (E0x controller)
• Payload 250 kg
• User friendy construction
| Max. payload | 250 kg |
| Degree of freedom | 2 axis |
| Nominal torque JT1 | 950 Nm |
| Max. torque JT1 | 2450 Nm |
| Nominal torque JT2 | 490 Nm |
| Max torque JT2 | 1200 Nm |
| Turning range JT1 | +/-180° |
| Turning range JT2 | +/-360° |
| Max. rotating speed JT1 | 150°/s |
| Max. rotating speed JT2 | 150°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT2 | 100 mm |
| Max. mass moment of inertia JT2 | 192 kgm2 |
| Mass | 200 kg |
| Default height of rotating axis JT1 | 545 mm |
