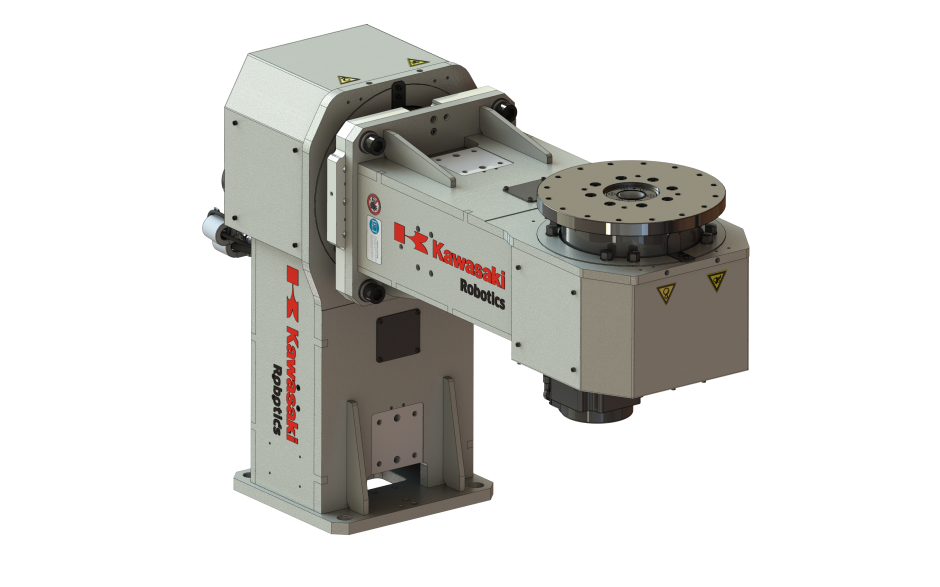

Double axis welding positioner with rated capacity of 250 kg

SKU: PST250-F2

2-8 weeks

Use of this product requires an individual consultation.

Courier delivery - from 9 EUR own transport - free of charge Conditions of delivery »

The product has technical support by ASTRAADA Support details »

• General purpose double axis positioner

• Horizontal rotating axis + Vertical rotating axis

• Kawasaki external axis (E0x controller)

• Payload 250 kg

Max. payload	250 kg
Degree of freedom	2 axis
Nominal torque JT1	920 Nm
Max. torque JT1	2450 Nm
Nominal torque JT2	490 Nm
Max torque JT2	1200 Nm
Turning range JT1	+/-180°
Turning range JT2	+/-360°
Max. rotating speed JT1	150°/s
Max. rotating speed Jt2	150°/s
Repeatability	±0.05 mm
Max. offset COG from rotating axis JT2	100 mm
Max. offset COG from flange surface	200 mm
Max. mass moment of inertia JT1	325 kgm2
Max. mass moment of Inertia JT2	192 kgm2
Mass	286.0000
Default height of rotating axis JT1	709 mm
Installation	Floor
Color	NCS S 0510-G50Y & RAL9011
Built-in utilities	Welding ground transfer system
Nominal weld current - 100% duty cycle	500 A
Environment cond.	0÷40°C (Humidity) 35÷85%, no dew
